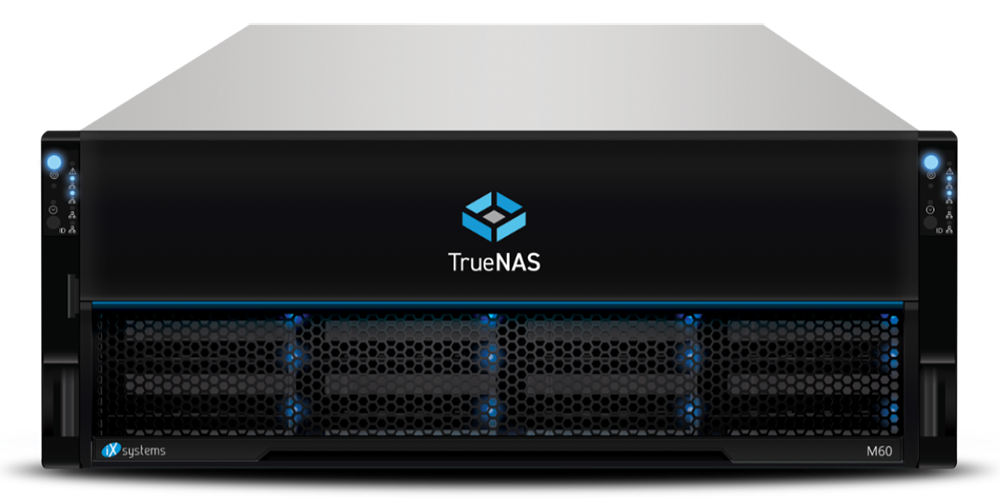

TrueNAS M60
TrueNAS M-Series · Powerful, Scalable Enterprise Storage

TrueNAS M60

  • Controller: 32 Cores (64 Threads)
  • Memory: 768 GB RAM
  • Read Cache: 12.8 TB NVMe
  • Write Cache: 2× 16 GB TrueCache® NVDIMM
  • Networking: 4× 10/25/40/100 GbE + 2× 10GBase-T
  • Fibre Channel: 4× 32 Gb
  • Max Storage: 30 PB
Request Pricing View Datasheet

Overview

The TrueNAS M60 is the flagship of the M-Series, delivering enterprise storage solutions with unparalleled performance and reliability for mission-critical operations at massive scale. With a 32-core controller, up to 1.5 TB of system memory across the series, and 12.8 TB of NVMe read cache backed by dual TrueCache® NVDIMM write caching, the M60 supports up to 30 PB of unified file, block, and S3-compliant object storage.

Designed with high-availability in mind, the M60 seamlessly integrates open-source economics with enterprise-grade hardware. With networking capabilities including four 100 GbE ports per controller and four 32 Gb FC ports, the M60 is adept at handling the most intensive IT workloads — from large-scale virtualization and media production to high-speed file sharing and backup operations running around the clock.

Features and Benefits

The capabilities that make the TrueNAS M60 the most powerful model in the M-Series — 32 cores, 768 GB RAM, 12.8 TB NVMe cache, and quad 100 GbE for the most demanding enterprise workloads.

Flagship Performance

32 Cores, 768 GB RAM, Dual NVDIMM — The M-Series Apex

The TrueNAS M60 combines DRAM, dual TrueCache® NVDIMM write caching, and 12.8 TB of NVMe read cache with high-density disks for low-latency flash performance at disk capacity and cost. It supports up to four 100 Gb/s network ports per controller for maximum data throughput, making it the most capable platform in the M-Series lineup.

TrueCache® NVDIMM Technology

Dual TrueCache® NVDIMM modules deliver fast, reliable, low-latency write caching. Data is stored before writing to the ZFS pool, with protection and mirroring across controllers in HA configurations — surviving power loss without data loss.

Self-Healing Data Protection

Utilizing the OpenZFS file system, the M60 automatically detects and repairs in-flight data corruption before it reaches the disk, and identifies and scrubs bit rot and data decay across all 30 PB of pool capacity.

High-Bandwidth Connectivity

01

4× 10/25/40/100 GbE Optical

Quad optical ports — the maximum in the M-Series — deliver up to 400 Gb/s aggregate bandwidth for the highest-throughput virtualization and file sharing environments.
02

2× 10GBase-T Standard

Two copper 10G ports for management and secondary data paths using standard Cat6A infrastructure.
03

4× 32 Gb Fibre Channel

Quad 32 Gb FC ports provide the highest Fibre Channel port density and bandwidth in the M-Series, enabling multi-path, multi-fabric SAN deployments for mission-critical block storage.
04

Unified File, Block & Object

SMB v1/2/3, NFSv3/v4, iSCSI, Fibre Channel, and S3-compliant object storage enable seamless integration across diverse enterprise workloads at petabyte scale.

Enterprise Reliability at Scale

High Availability — Dual Controller with Dual Mirrored NVDIMM

The TrueNAS M60 offers optional dual-controller HA with automated rapid failover without data loss, virtual IP address migration, and online software updates. Both NVDIMM modules are mirrored across controllers in HA configurations — providing write-cache persistence and data protection across the full 30 PB pool even during a controller failure.

Intelligent Storage Optimization

TrueNAS Adaptive Compression (TAC) dynamically adjusts compression to enhance performance and maximize capacity efficiently, achieving data reduction ratios exceeding 2.5× across the 30 PB pool.

TrueSecure Security

FIPS 140 for data-at-rest and data-in-flight, NIST 800-209, GPOS STIG, KMIP key management, encrypted drives and datasets protect the M60's mission-critical data end-to-end.
View all features in the datasheet
Authorized TrueNAS Reseller

More than a price tag

At 30 PB with quad 100 GbE and dual NVDIMM, the M60 is a significant infrastructure decision. Drive selection, expansion shelf count, HA configuration, and power requirements all need careful planning. Let us help you build the right M60 spec and stay on the order until it ships.

  • Configuration guidance from people who know TrueNAS
  • Authorized-reseller pricing, without the procurement friction
  • Order follow-through — from PO to delivery
Talk to a Specialist View Datasheet

Technical Specifications

Hardware metrics from the official TrueNAS datasheet.

  • Platform
    TrueNAS M60
  • Form Factor
    4U rackmount, 24× 3.5″/2.5″ drive bays (front-loading, hot swap)
  • Controller
    32 Cores (64 Threads)
  • RAM (Max)
    768 GB
  • Read Cache (Max)
    12.8 TB NVMe
  • Write Cache
    2× 16 GB TrueCache® NVDIMM
  • Storage Type
    Hybrid or All-Flash (optional)
  • High Availability
    Optional dual controller

  • Max Storage
    30 PB
  • Max Expansion Shelves
    12

  • High-Speed Networking
    4× 10/25/40/100 GbE (optical)
  • Standard Networking
    2× 10GBase-T (standard)
  • Fibre Channel
    4× 32 Gb

  • Max Power Draw (Single Controller)
    1225 Watts
  • Max Power Draw (Dual Controller / HA)
    1450 Watts
  • Heat Output
    4180 / 4947 BTU/h (single / HA)
  • Power Supply
    Dual redundant, hot-swappable, 80%+ efficiency
  • Input Power
    High-line 200–240V 50/60 Hz

  • Dimensions (L × W × H)
    27″ × 19″ × 7″ | 686 × 483 × 178 mm
  • Rackmount Rails
    26″–36.5″
  • Operating Temperature
    0°C to 35°C
  • Humidity
    5% to 95% non-condensing
  • Empty Weight
    75 lbs | 34 kg
  • Fully-Loaded Weight
    114 lbs | 52 kg
  • Compliance
    RoHS 6/6 compliant, CE, FCC Class A, UL, BSMI

  • File Protocols
    SMB v1/2/3, NFSv3/v4, FTP, WebShare
  • Block Protocols
    iSCSI, Fibre Channel, OpenStack Cinder
  • Object Protocols
    S3-compliant
  • Directory Services
    Active Directory, FreeIPA, Kerberos, LDAP, NIS
  • File System
    OpenZFS — self-healing, immutable snapshots, RAID-Z1/Z2/Z3, dRAID
  • High Availability
    Available dual controller support, automated rapid failover without data loss, virtual IP address migration, dual NVDIMM mirroring
  • TrueSecure Security
    FIPS 140, NIST 800-209, GPOS STIG, KMIP key management, encrypted drives and datasets
  • Cloud Backup
    iX-Storj, Amazon S3, Backblaze B2, Google Cloud, Microsoft Azure
View datasheet for full specs

Compare TrueNAS M-Series Models

Select the right scale for your storage workload.

Model Max Throughput Max Raw Capacity Networking Action
TrueNAS M30 — 1.5 PB 2× 10/25/40 GbE View
TrueNAS M40 — 3 PB 2× 10/25/40/100 GbE View
TrueNAS M50 — 10 PB 2× 10/25/40/100 GbE View
TrueNAS M60 This model — 30 PB 4× 10/25/40/100 GbE Current

Frequently asked questions

The TrueNAS M60 is a 4U dual-controller HA hybrid NAS with a 32-core controller, up to 30 PB capacity, NVMe cache, and 4× 100 GbE networking. The top of the M-Series HA hybrid line.

Up to 30 PB — the largest in the M-Series, 3× the M50's 10 PB ceiling. Designed for organizations that need HA hybrid economics at petabyte scale.

4× 100 GbE — exclusive to the M60 in the M-Series. The M50 caps at 2× 10/25/40/100 GbE. The 4-port configuration is built for many concurrent client streams.

The M60 is HA hybrid with HDDs and NVMe cache; the F100 is all-NVMe flash with the same dual-controller HA option. F100 wins on IOPS density; M60 wins on per-TB cost at hyperscale capacities.

Hyperscale HA hybrid: enterprise file shares with petabyte capacities, large backup repositories with multi-year retention, datasets too cost-prohibitive for all-flash but where HA failover is mandatory.
