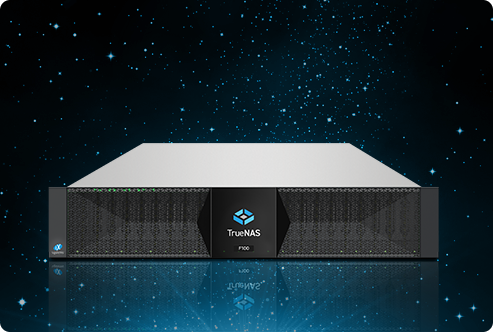

TrueNAS F-Series TrueNAS F-Series · High Performance NVMe Storage

TrueNAS F-Series

All-flash NVMe enterprise storage in a compact 2U form factor. Two models sharing dual-controller HA, 512 GB DRAM read cache, and support for up to 20 PB of flash capacity — engineered for the highest-throughput workloads with up to 8× 100 GbE connectivity.

Request Pricing View Datasheet

Browse the F-Series

All-flash NVMe enterprise storage with dual-controller HA in a compact 2U form factor.

TrueNAS F60
High-performance all-flash

TrueNAS F60

2U all-NVMe · 32-core · 4× 100 GbE · 9 PB all-flash (18 PB effective)

View Details →

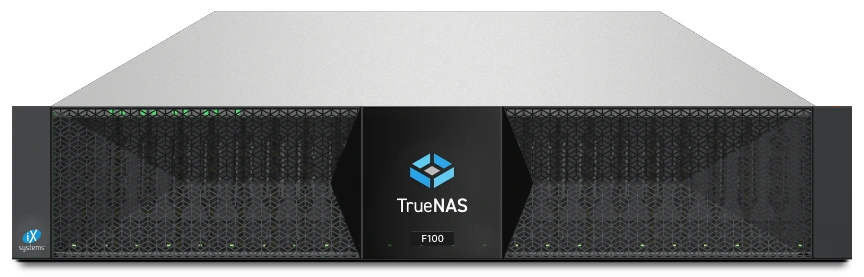

TrueNAS F100
Top-of-line all-flash

TrueNAS F100

2U all-NVMe · 48-core · up to 8× 100 GbE · 20 PB all-flash (40 PB effective)

View Details →

Unmatched Performance

The TrueNAS F-Series is engineered for maximum productivity, combining industry-leading speed, density, reliability, and scalability. Designed for high-performance deployments, it seamlessly integrates open-source economics with enterprise-grade hardware and support. Whether handling media workflows, containerized applications, or other demanding workloads, the F-Series delivers the power and flexibility needed for modern IT environments.

With NVMe flash performance, a compact 2U form factor, and a unified storage approach, the TrueNAS F-Series offers high-speed data access and simplified management through an intuitive web-based interface. These systems ensure seamless scalability and enterprise reliability with award-winning support, making them an ideal solution for organizations that require both performance and ease of use.

The TrueNAS F60 and F100 models deliver all-flash, dual-controller storage with up to 20 PB capacity and support for multiple high-speed network interfaces—up to 6× 100 GbE. Built with energy-efficient, high-performance NVMe Flash, the F-Series supports demanding workloads like media production, virtualization, and high-speed file sharing. Intelligent Storage Optimization enhances efficiency with data reduction ratios exceeding 2.5×, while High Availability (HA) architecture ensures uninterrupted storage services.

Features & Benefits

What sets the TrueNAS F-Series apart for high-performance deployments.

Performance & High Availability

Extreme Performance & High Availability

Utilizes NVMe flash technology, ZFS, and up to six 100 Gb/s network ports per controller for ultra-fast data movement. Dual Node High Availability (HA) ensures uninterrupted operations with automatic failover, making the F-Series ideal for mission-critical workloads.

Advanced Data Protection

Self-healing ZFS detects and repairs in-flight data corruption, prevents bit rot, and safeguards data integrity at all times—automatically, with no administrator action required.

Intelligent Storage Efficiency

Offers built-in compression, snapshots, clones, and thin provisioning. TrueNAS Adaptive Compression (TAC) optimizes performance while maximizing capacity without wasting system resources.

Data Protection & Recovery

01

Built-In Snapshots & Replication

Includes configurable retention, restoration, and replication without extra licensing fees, protecting data from ransomware, accidental deletion, and ensuring efficient disaster recovery.
02

Flexible Backup & Disaster Recovery

Data can be securely replicated across local, remote, or cloud environments for seamless business continuity—to Amazon S3, Backblaze B2, Google Cloud, and Microsoft Azure.
03

Cost-Effective Scalability

Delivers enterprise-level storage optimization, including snapshots and replication, without additional licensing fees. Scale from 2 to 6 NVMe expansion shelves as needs grow.
04

TrueSecure Security

FIPS 140 for data-at-rest and data-in-flight, encrypted drives and datasets with KMIP key management, NIST 800-209, and GPOS STIG compliance.
View all features in the datasheet

TrueNAS F-Series Models

Choose the model that fits your performance and capacity requirements.

Model

TrueNAS F60

Controller: 32 Cores (64 Threads)
Read Cache: 512 GB DRAM
Networking: Up to 4× 10/25/40/100 GbE
Fibre Channel: 4× 32 Gb
Max Capacity (All-Flash): 9 PB (18 PB effective*)
Max Capacity (Hybrid): 10 PB (20 PB effective*)
Max NVMe Expansion Shelves: 2
Max SAS Expansion Shelves: 4
Typical Power Draw (HA): 600 Watts
Contact for pricing
Get a Quote
Model

TrueNAS F100

Controller: 48 Cores (96 Threads)
Read Cache: 512 GB DRAM
Networking: Up to 4× 100 GbE or up to 8× 100 GbE
Fibre Channel: 6× 32 Gb
Max Capacity (All-Flash): 20 PB (40 PB effective*)
Max Capacity (Hybrid): 20 PB (40 PB effective*)
Max NVMe Expansion Shelves: 6
Max SAS Expansion Shelves: 8
Typical Power Draw (HA): 800 Watts
Contact for pricing
Get a Quote

* Maximum effective capacity assumes typical data reduction through compression and deduplication. Dual Controller (HA) optional. All-Flash Storage standard on both models.

Authorized TrueNAS Reseller

NVMe performance at enterprise scale

The F-Series configuration—all-flash vs. hybrid, single vs. dual controller, expansion shelf count—has a major impact on throughput and total cost. Our team helps you model your workload requirements and arrive at the right configuration before the purchase order.

  • F60 vs. F100 sizing guidance based on your throughput requirements
  • Authorized-reseller pricing, without the usual procurement friction
  • Order follow-through — from PO to delivery
Talk to a Specialist Get a Custom Quote

Technical Specifications

Hardware metrics from the official TrueNAS datasheet.

  • Form Factor
    2U rackmount
  • Drive Bays
    24× 2.5″ NVMe SSD (front-loading, hot-swap)
  • Dimensions (L × W × H)
    27″ × 19″ × 3.5″ | 686 × 483 × 89 mm
  • Rackmount Rails
    27″–37″
  • Operating Temperature
    5°C to 35°C
  • Humidity
    20% to 80% non-condensing
  • Empty Weight
    43 lbs | 19.5 kg
  • Fully-Loaded Weight
    56.2 lbs | 25.4 kg
  • Compliance
    RoHS 6/6, CE, FCC Class A, UL, TÜV, BSMI, KC, VCC

  • Enterprise HDDs
    7200 RPM SAS3, 8 TB to 26 TB; SED, FIPS 140 options
  • NVMe SSDs (Gen4, Dual Port)
    3.8 TB to 122 TB; SED, FIPS 140 options

  • File System
    OpenZFS self-healing; immutable snapshots and clones; in-line compression and deduplication; RAID-Z1/Z2/Z3, dRAID
  • File Protocols
    SMB v1/2/3, NFSv3/v4 RDMA, FTP, WebShare
  • Block Protocols
    iSCSI, iSER, NVMe/RDMA, Fibre Channel, NVMe/TCP, OpenStack Cinder
  • Object Protocols
    S3-compliant
  • Directory Services
    Active Directory (AD), FreeIPA, Kerberos, LDAP, NIS
  • Backup
    Snapshot-based OpenZFS replication; Rsync and cloudsync; TrueCloud backup to Storj; supports Asigra, Acronis, Veeam, Nakivo, NetBackup, and more
  • Virtualization
    VMware VAAI, ESXi snapshot integration, KVM, Citrix XenServer, Microsoft Hyper-V, Proxmox
  • Management IO
    1× IPMI Out-of-Band Management Port; 1× WebUI Port
View datasheet for full specs
