TrueNAS M-Series · Capacity Powerhouse

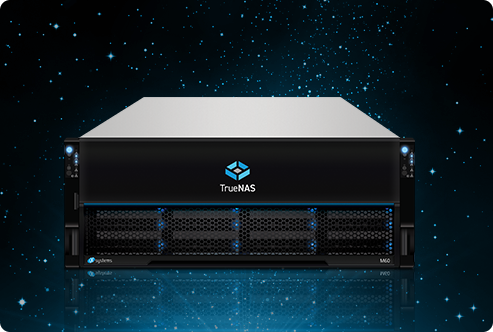

TrueNAS M-Series
Powerful, scalable enterprise storage delivering unified file, block, and S3-compatible object storage. Four models with TrueCache NVDIMM acceleration, optional dual-controller HA, and up to 30 PB raw capacity — built for the most demanding data center workloads.
Browse the M-Series
Capacity-class enterprise storage with TrueCache NVDIMM acceleration and dual-controller HA.
Capacity Powerhouse
The TrueNAS M-Series delivers enterprise storage solutions offering unparalleled performance and reliability for mission-critical operations. Designed with high-availability in mind, it seamlessly integrates open-source economics with enterprise-grade hardware, providing organizations with the flexibility and scalability they demand.
Available in four versatile models—M30, M40, M50, and M60—the M-Series delivers unified file, block, and S3-compliant object storage. These systems support configurations ranging from hybrid to all-flash setups, featuring impressive specifications such as up to 1.5 TB of system memory, TrueCache NVDIMM and NVMe caching, and scalability reaching up to 30 PB of capacity. With networking capabilities that include multiple high-speed connections (up to 4× 100 GbE), the M-Series is adept at handling intensive IT workloads, from virtualization and media production to high-speed file sharing and backup operations.
Built to conserve power, space, and cooling, the M-Series employs a modular hardware architecture that supports diverse applications through its hybrid flash and disk storage pools. High Availability (HA) configurations ensure continuous storage services, while Intelligent Storage Optimization achieves data reduction ratios exceeding 2.5×, maximizing storage efficiency.
Features & Benefits
Enterprise performance and scalability without compromise.
Performance & Reliability
Performance & Scale Without Compromise
TrueCache® NVDIMM Technology
Self-Healing Data Protection
Storage Efficiency & Management
Intelligent Storage Optimization
Unmatched Data Integrity
Enhanced Data Protection
Cost-Effective Scalability
TrueNAS M-Series Models
Four models scaled to fit your performance and capacity requirements.

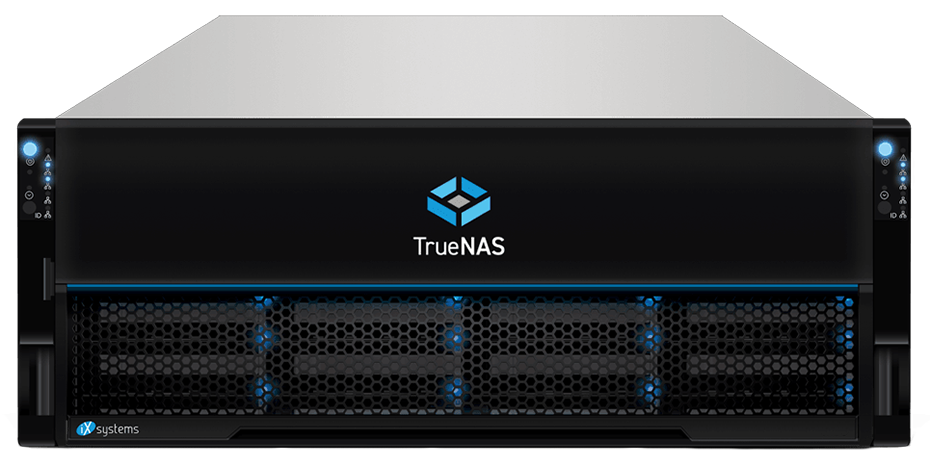

| TrueNAS M30 | TrueNAS M40 | TrueNAS M50 | TrueNAS M60 | |
|---|---|---|---|---|
| Hybrid or All-Flash Storage | Optional | |||
| Dual Controller (HA) | Optional | |||
| Controller | 8 Cores (8 Threads) | 10 Cores (20 Threads) | 20 Cores (40 Threads) | 32 Cores (64 Threads) |
| RAM (Max) | 96 GB | 192 GB | 384 GB | 768 GB |
| Read Cache (Max) | 800 GB SAS | 2.4 TB SAS or 3.2 TB NVMe | 6.4 TB NVMe | 12.8 TB NVMe |
| Write Cache | 16 GB SAS | 16 GB TrueCache® NVDIMM | 16 GB TrueCache® NVDIMM | 2× 16 GB TrueCache® NVDIMM |
| Networking (Optical) | 2× 10/25/40 GbE | 2× 10/25/40/100 GbE | 2× 10/25/40/100 GbE | 4× 10/25/40/100 GbE |
| Networking (Standard) | 2× 10GBase-T | |||
| Fibre Channel | 2× 16 Gb | 4× 16 Gb | 4× 16 Gb or 2× 32 Gb | 4× 32 Gb |
| Max Storage | 1.5 PB | 3 PB | 10 PB | 30 PB |
| Max Expansion Shelves | 2× ES24, 1× ES60 | 2 | 8 | 12 |
| Power (Single Controller) | 450 W | 825 W | 975 W | 1225 W |
| Power (Dual Controller / HA) | 600 W | 950 W | 1150 W | 1450 W |
| Heat Output (Single/HA) | 1535/2047 BTU/h | 2815/3241 BTU/h | 3327/3924 BTU/h | 4180/4947 BTU/h |
Scale to 30 PB without breaking the budget
The M-Series is built for organizations that need enterprise capacity and reliability with the economics of open-source. Getting the right model, HA configuration, and drive mix at the start prevents costly over-provisioning. Our team helps you size accurately before the purchase order is placed.
- M30 through M60 sizing guidance based on workload and growth projections
- Authorized-reseller pricing, without the usual procurement friction
- Order follow-through — from PO to delivery
Technical Specifications
Hardware metrics from the official TrueNAS datasheet.
-
Form Factor4U rackmount
-
Drive Bays24× 3.5/2.5″ hard drive bays (front-loading, hot-swap)
-
Dimensions (L × W × H)27″ × 19″ × 7″ | 686 × 483 × 178 mm
-
Rackmount Rails26″–36.5″
-
Operating Temperature0°C to 35°C
-
Non-Operating Temperature−10°C to 70°C
-
Humidity5% to 95% non-condensing
-
Empty Weight75 lbs | 34 kg
-
Fully-Loaded Weight114 lbs | 52 kg
-
ComplianceRoHS 6/6, CE, FCC Class A, UL, BSMI
-
Enterprise Nearline HDDs7200 RPM SAS3; capacities from 4 TB to 26 TB; SED, FIPS 140-2 options
-
Enterprise SSDs (SAS3)1.92 TB to 15.3 TB; RI, SED, FIPS 140-2 options
-
NVMe SSDs1.6 TB to 30.7 TB; SED, FIPS 140-3 options
-
Power SuppliesDual redundant, hot-swappable, high-efficiency (80%+)
-
Input Power (M30/M40/M50)Auto-switching 100–240V 50/60Hz
-
Input Power (M60)High-line 200–240V 50/60Hz
-
Remote ManagementIPMI remote power on/off
-
File SystemOpenZFS self-healing; immutable snapshots and clones; thin and thick provisioning; in-line compression and deduplication; ZFS Stripe, Mirror, RAID-Z1/Z2/Z3, dRAID
-
File ProtocolsSMB v1/2/3, NFSv3/v4, FTP, WebShare
-
Block ProtocolsiSCSI, Fibre Channel, OpenStack Cinder
-
Object ProtocolsS3-compliant
-
Directory ServicesActive Directory (AD), FreeIPA, Kerberos, LDAP, NIS
-
High AvailabilityAvailable dual controller support; automated rapid failover without data loss; virtual IP address migration; online software updates
-
VirtualizationVMware VAAI, ESXi snapshot integration, VM Warn/Stun, vCenter; KVM, Citrix XenServer, Microsoft Hyper-V; Microsoft VSS, ODX, CSV
-
TrueSecure SecurityFIPS 140 for data-at-rest and data-in-flight; restricted admins (Security, Storage, Monitor); auditing of SMB & Admin events; encrypted drives and datasets; KMIP; NIST 800-209, GPOS STIG
-
BackupSnapshot-based OpenZFS replication; Rsync and cloudsync; TrueCloud backup to Storj; supports Asigra, Acronis, Veeam, Nakivo, NetBackup, and more
-
Cloud ProvidersiX-Storj, Amazon S3, BackBlaze B2 Cloud, Google Cloud, Microsoft Azure
