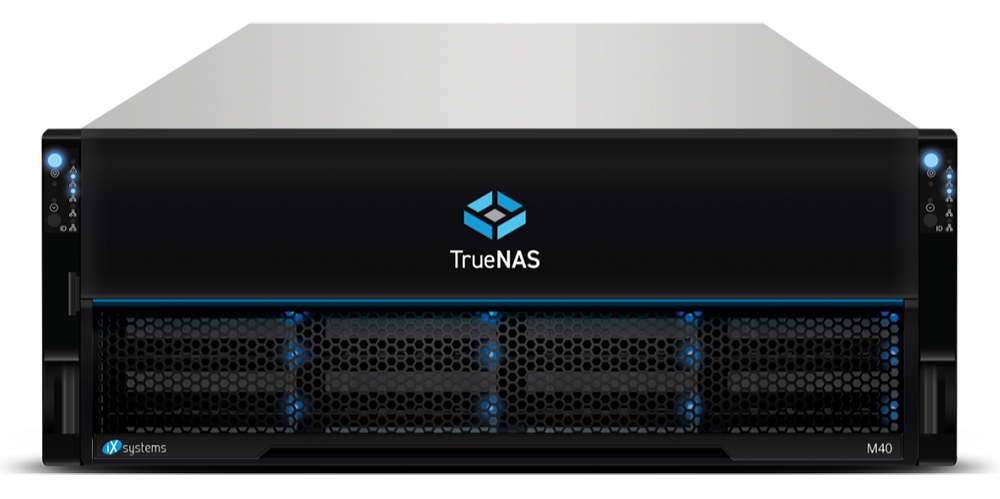

TrueNAS M40
TrueNAS M-Series · Powerful, Scalable Enterprise Storage

TrueNAS M40

  • Controller: 10 Cores (20 Threads)
  • Memory: 192 GB RAM
  • Read Cache: 2.4 TB SAS or 3.2 TB NVMe
  • Write Cache: 16 GB TrueCache® NVDIMM
  • Networking: 2× 10/25/40/100 GbE + 2× 10GBase-T
  • Fibre Channel: 4× 16 Gb
  • Max Storage: 3 PB
Request Pricing View Datasheet

Overview

The TrueNAS M40 delivers enterprise storage solutions offering unparalleled performance and reliability for mission-critical operations. Designed with high-availability in mind, it seamlessly integrates open-source economics with enterprise-grade hardware, providing organizations with the flexibility and scalability they demand.

The M40 is the first M-Series model to feature TrueCache® NVDIMM write caching — delivering fast, reliable, low-latency write performance that stores data before committing to the ZFS pool, with protection and mirroring for HA configurations. With 100 GbE optical networking and 4× 16 Gb Fibre Channel, the M40 handles intensive virtualization, media production, file sharing, and backup workloads at scale.

Features and Benefits

The capabilities that set the TrueNAS M40 apart — particularly TrueCache NVDIMM write acceleration and 100 GbE networking — for high-throughput enterprise workloads.

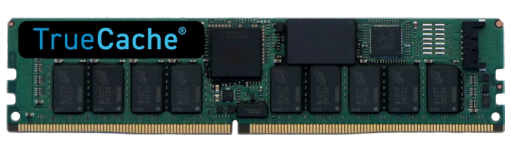

TrueCache® NVDIMM Technology

TrueCache® NVDIMM — Fast, Reliable, Low-Latency Write Caching

Found in the M40, M50, and M60, TrueCache® NVDIMM delivers fast, reliable, low-latency write caching. It stores data before writing to the ZFS pool, ensuring protection and mirroring for high availability. This persistent write cache survives power loss — eliminating the data-loss risk of standard DRAM-based write caches.

Performance & Scale Without Compromise

The TrueNAS M40 combines DRAM, TrueCache® NVDIMM, and NVMe/SSD with high-density disks for low-latency flash performance at disk capacity and cost, supporting up to 100 Gb/s network ports per controller.

Self-Healing Data Protection

Utilizing the OpenZFS file system, the M40 automatically detects and repairs in-flight data corruption before it reaches the disk, and identifies and scrubs bit rot and data decay.

Connectivity and Protocols

01

2× 10/25/40/100 GbE Optical

Dual optical ports supporting 10, 25, 40, or 100 GbE deliver maximum bandwidth flexibility for any switching fabric or direct-attach hypervisor configuration.
02

2× 10GBase-T Standard

Two copper 10G ports for management and secondary data paths using standard Cat6A cabling infrastructure.
03

4× 16 Gb Fibre Channel

Quad 16 Gb FC ports provide double the FC port density of the M30, enabling multi-path SAN connectivity for high-availability block storage deployments.
04

Unified File, Block & Object

SMB v1/2/3, NFSv3/v4, iSCSI, Fibre Channel, and S3-compliant object storage enable seamless integration across diverse enterprise workloads.

Enterprise Reliability

High Availability — Optional Dual Controller with NVDIMM Mirroring

The TrueNAS M40 offers optional dual-controller HA with automated rapid failover without data loss, virtual IP address migration, and online software updates. In HA configurations, TrueCache NVDIMM state is mirrored between controllers — ensuring write-cached data survives a controller failure without data loss.

Intelligent Storage Optimization

TrueNAS Adaptive Compression (TAC) dynamically adjusts compression to enhance performance and maximize capacity efficiently, achieving data reduction ratios exceeding 2.5×.

TrueSecure Security

FIPS 140 for data-at-rest and data-in-flight, NIST 800-209, GPOS STIG, KMIP key management, encrypted drives and datasets, and restricted admin roles protect critical data end-to-end.
View all features in the datasheet
Authorized TrueNAS Reseller

More than a price tag

The M40's TrueCache NVDIMM and 100 GbE options open up configuration decisions that most procurement teams haven't navigated before. Tell us your workload — we'll size the cache tier, confirm whether HA is the right call, and stay on the order until it ships.

  • Configuration guidance from people who know TrueNAS
  • Authorized-reseller pricing, without the procurement friction
  • Order follow-through — from PO to delivery
Talk to a Specialist View Datasheet

Technical Specifications

Hardware metrics from the official TrueNAS datasheet.

  • Platform
    TrueNAS M40
  • Form Factor
    4U rackmount, 24× 3.5″/2.5″ drive bays (front-loading, hot swap)
  • Controller
    10 Cores (20 Threads)
  • RAM (Max)
    192 GB
  • Read Cache (Max)
    2.4 TB SAS or 3.2 TB NVMe
  • Write Cache
    16 GB TrueCache® NVDIMM
  • Storage Type
    Hybrid or All-Flash (optional)
  • High Availability
    Optional dual controller

  • Max Storage
    3 PB
  • Max Expansion Shelves
    2

  • High-Speed Networking
    2× 10/25/40/100 GbE (optical)
  • Standard Networking
    2× 10GBase-T (standard)
  • Fibre Channel
    4× 16 Gb

  • Max Power Draw (Single Controller)
    825 Watts
  • Max Power Draw (Dual Controller / HA)
    950 Watts
  • Heat Output
    2815 / 3241 BTU/h (single / HA)
  • Power Supply
    Dual redundant, hot-swappable, 80%+ efficiency
  • Input Power
    Auto-switching 100–240V 50/60 Hz

  • Dimensions (L × W × H)
    27″ × 19″ × 7″ | 686 × 483 × 178 mm
  • Rackmount Rails
    26″–36.5″
  • Operating Temperature
    0°C to 35°C
  • Humidity
    5% to 95% non-condensing
  • Empty Weight
    75 lbs | 34 kg
  • Fully-Loaded Weight
    114 lbs | 52 kg
  • Compliance
    RoHS 6/6 compliant, CE, FCC Class A, UL, BSMI

  • File Protocols
    SMB v1/2/3, NFSv3/v4, FTP, WebShare
  • Block Protocols
    iSCSI, Fibre Channel, OpenStack Cinder
  • Object Protocols
    S3-compliant
  • Directory Services
    Active Directory, FreeIPA, Kerberos, LDAP, NIS
  • File System
    OpenZFS — self-healing, immutable snapshots, RAID-Z1/Z2/Z3, dRAID
  • High Availability
    Available dual controller support, automated rapid failover without data loss, virtual IP address migration, NVDIMM mirroring
  • TrueSecure Security
    FIPS 140, NIST 800-209, GPOS STIG, KMIP key management, encrypted drives and datasets
  • Cloud Backup
    iX-Storj, Amazon S3, Backblaze B2, Google Cloud, Microsoft Azure
View datasheet for full specs

Compare TrueNAS M-Series Models

Select the right scale for your storage workload.

Model Max Throughput Max Raw Capacity Networking Action
TrueNAS M30 — 1.5 PB 2× 10/25/40 GbE View
TrueNAS M40 This model — 3 PB 2× 10/25/40/100 GbE Current
TrueNAS M50 — 10 PB 2× 10/25/40/100 GbE View
TrueNAS M60 — 30 PB 4× 10/25/40/100 GbE View

Frequently asked questions

The TrueNAS M40 is a 4U dual-controller HA hybrid NAS with a 10-core controller, up to 3 PB capacity, NVMe cache, and 2× 10/25/40/100 GbE networking. Midrange of the M-Series HA line.

Yes — dual-controller HA is standard on every M-Series model, with automatic failover. The M40 is the typical "HA hybrid for departmental and SMB workloads" pick.

M30 is 8-core / 1.5 PB; M40 is 10-core / 3 PB; M50 is 20-core / 10 PB. Same chassis, same protocols, same HA mechanism — the differences are scale.

2× 10/25/40/100 GbE. The M30 caps at 2× 25/40 GbE; the M60 adds a 4× 100 GbE option for higher-throughput deployments.

SMB, NFS (incl. NFSv4 RDMA), iSCSI, iSER, NVMe-oF, Fibre Channel, and S3-compatible via MinIO AIStor. Backup integration with Veeam, Acronis, Nakivo, NetBackup, TrueCloud.
