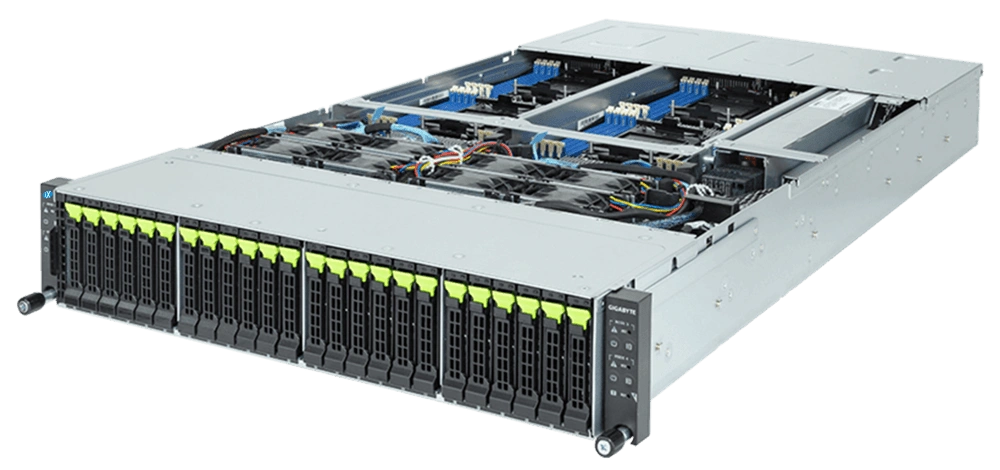

iXsystems iX-22X424G (Gen 4)
2U 4-Node Dual Intel Xeon Scalable Processors Server
Get a Quote!
The iXsystems iX Series is a line of enterprise-grade rackmount servers designed to deliver reliable performance, versatility, and scalability for a wide range of workloads. The iX Series includes servers with various configurations, such as the iX-22X424G, which features a 2U form factor, a dual Intel Xeon LGA 4677 scalable gen4 processor, 16 DIMM slots with support for up to 16TB of total memory, and dual 10GbE network connectivity. The iX-22X424G also provides flexible storage options, including six 2.5” SATA/NVMe drive bays. Additionally, the server is equipped with two PCI-E 5.0 x16 slots and one M.2 slot, allowing for expandability and customization based on the needs of the deployment. Overall, the iXsystems iX Series servers are built to offer robust performance and efficiency for modern data centers and IT environments.
- All-Flash NVMe Hyperconverged Infrastructure
- Scale-Out File Server
- Diskless HPC Clusters
- HPC, Data Center, Enterprise Server
- Compute Intensive Application
- 16 DIMM Slots Per Node – Up to 16 TB total memory
- 6 x 2.5″ Hot-swap NVMe/SATA Drive Bays Per Node
- 2 x PCI-E 5.0 x16 Slots Per Node
- 1 x M.2 Slots Per Node
|Processor Support||Dual Intel Xeon LGA 4677 Scalable Gen4 Processors (Sapphire Rapids)|
|Chipset||Intel C741 Chipset|
|System Memory (Max.)||Each node (1 of 4): Up to 4TB ECC 3DS LRDIMM, Up to DDR5-4800Mhz; 16 DIMM Slots per Node|
|Networking||Dual 10GbE BaseT with Intel X710|
|PCIe Networking Options||Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available|
|VGA/BMC||Each node (1 of 4): Aspeed AST2600 BMC|
|Remote Management||Each node (1 of 4): Redfish API, IPMI 2.0; KVM with Dedicated LAN|
|Form Factor||2U Rackmount|
|Dimensions||840mm x 440mm x 87.5mm|
|Onboard Storage Controller||Each node (1 of 4): Gen 4 NVMe/SATA via Intel CPU|
|RAID Controller Options||Optional SAS RAID Available|
|Drive Bays||Each node (1 of 4): 6 x 2.5” Hot-swap SATA3/SAS3/NVMe Drive Bays|

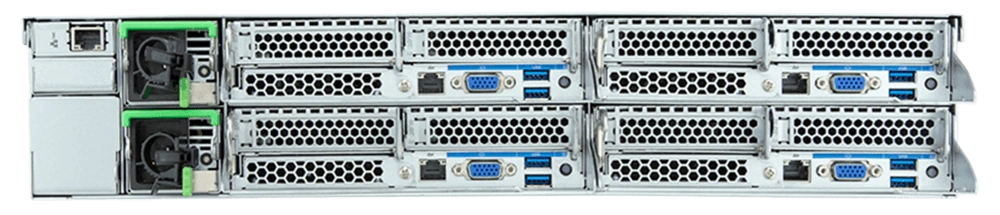

|Expansion Slots||Each node (1 of 4):
2 x PCI-E 5.0 x16 LP
1 x PCI-E 5.0 x16 OCP
|Power Supply||2 x 2600W Redundant High-Efficiency Power Supplies with I2C & PMBus|
- Pricing and product availability subject to change without notice.
