1U Single Intel Xeon E-2300 Processor Server
Get a Quote!

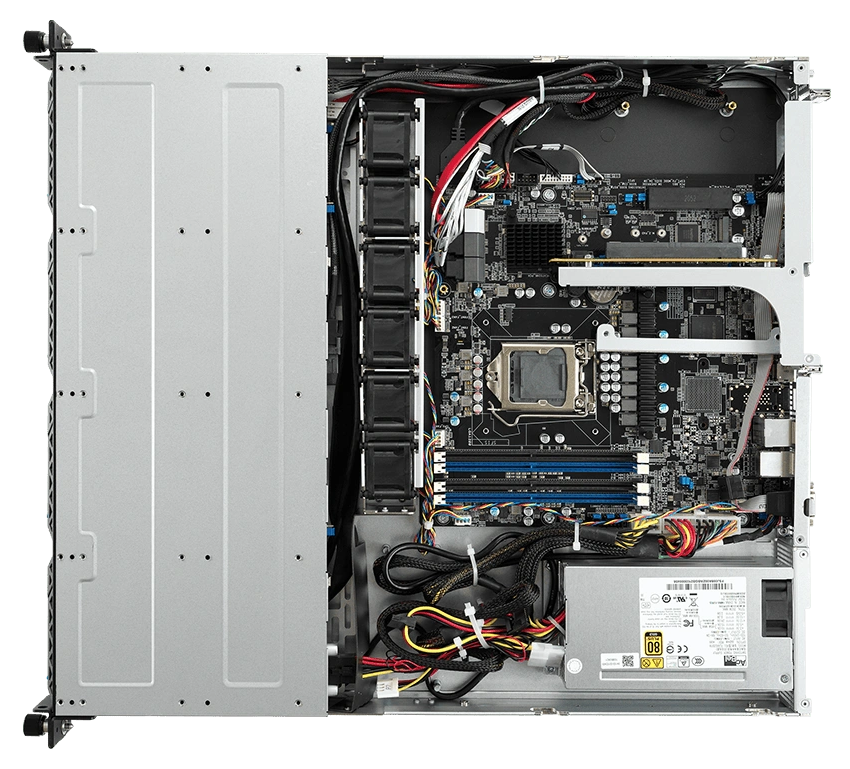

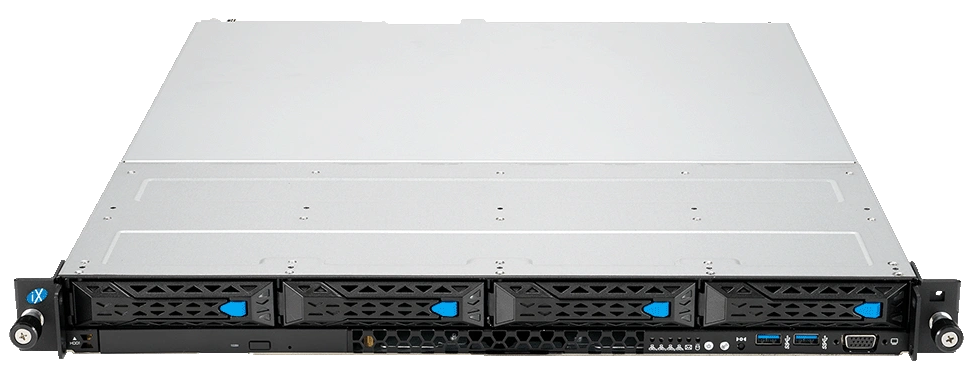

The iXsystems iX Series is a line of enterprise-grade rackmount servers designed to deliver reliable performance, versatility, and scalability for a wide range of workloads. The iX Series includes servers with various configurations, such as the iX-1104A, which features a 1U form factor, a single Intel Xeon E-2300 processor, four DIMM slots with support for up to 128GB of total memory, and dual 1GbE network connectivity. The iX-1104A also provides flexible storage options, including two SATA/SAS/NVMe drive bays and two additional SATA/SAS bays. Additionally, the server is equipped with PCI-E 4.0 slots and an M.2 slot, allowing for expandability and customization based on the needs of the deployment. Overall, the iXsystems iX Series servers are built to offer robust performance and efficiency for modern data centers and IT environments.
- Web Server
- Firewall Applications
- Corporate – WINS, DNS, Print, Login
- Gateway, Provisioning Servers
- Network Appliance
- 4 DIMM Slots – Up to 128 GB Total Memory
- 2 x SATA/SAS/NVMe + 2 x SATA/SAS
- 1 x PCI-E 4.0 x16 Slot
- 1 x PCI-E 4.0 x8 Slot
- 1 x M.2 Slot
|Processor Support||Single Intel Xeon E-2300 Series Processors|
|Chipset||Intel C252 Chipset|
|System Memory (Max.)||Up to 128 GB Unbuffered ECC DDR4 3200MHz SDRAM; 4 DIMM Slots|
|Networking||Dual 1GbE i210AT|
|PCIe Networking Options||Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available|
|VGA/BMC||ASPEED AST2600 BMC|
|Remote Management||Redfish API, IPMI 2.0; KVM with Dedicated LAN|
|Form Factor||1U Rackmount|
|Dimensions||497mm x 439.5mm x 44mm|
|Onboard Storage Controller||Intel SATA (6 Gbps) Controller + NVMe Controller|
|RAID Controller Options||Optional Hardware RAID or SAS HBA Available|
|Drive Bays||4 x SATA/SAS|
|Expansion Slots||1 x PCI-E 4.0 x16 FHFL
1 x PCI-E 4.0 x8 LP HHHL
1 x PCI-E 3.0 x4 Internal
|Power Supply||2 x 450W Redundant High-Efficiency Power Supplies with I2C & PMBus|
iXsystems iX-1104A Datasheet (.PDF)
- Pricing and product availability subject to change without notice.
