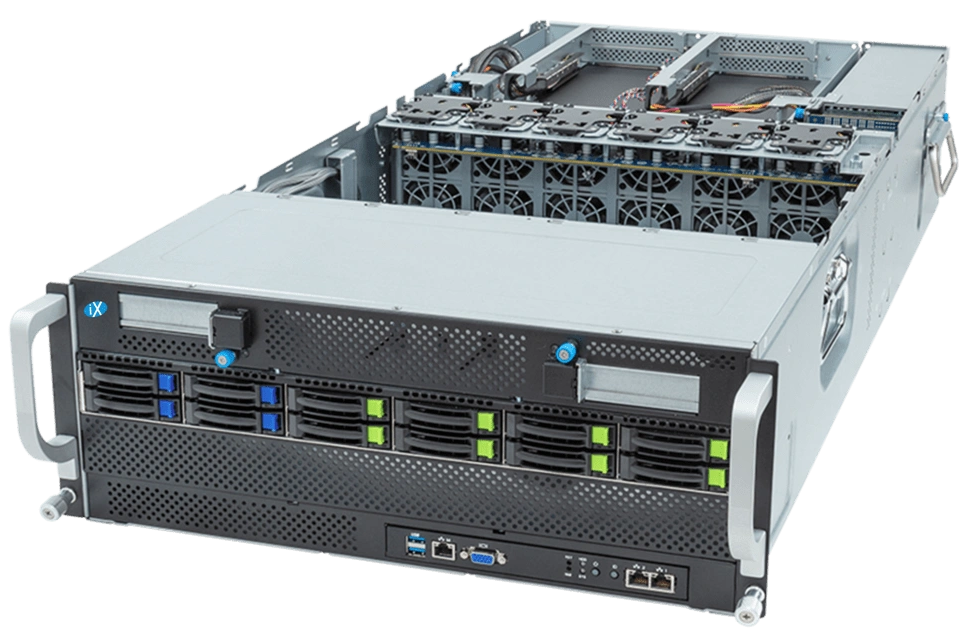

iXsystems AX-4212G (Gen 4)
4U Dual AMD EPYC GPU Server
Get a Quote!
The iXsystems iX Series is a line of enterprise-grade rackmount servers designed to deliver reliable performance, versatility, and scalability for a wide range of workloads. The iX Series includes servers with various configurations, such as the AX-4212G, which features a 4U form factor, a dual AMD EPYC 9004 processor, 48 DIMM slots with support for up to 12TB of total memory, and dual 1GbE network connectivity. The AX-4212G also provides flexible storage options, including eight 2.5” SATA/NVMe drive bays and four additional 2.5” SATA bays. Additionally, the server is equipped with ten dual FHFL GPU slots, two PCI-E 5.0 x16 slots, and two M.2 slots, allowing for expandability and customization based on the needs of the deployment. Overall, the iXsystems iX Series servers are built to offer robust performance and efficiency for modern data centers and IT environments.
- AI Deep Learning
- Animation and Modeling
- AI Inference and Machine Learning
- Diagnostic Imaging
- 48 DIMM Slots – Up to 12 TB total memory

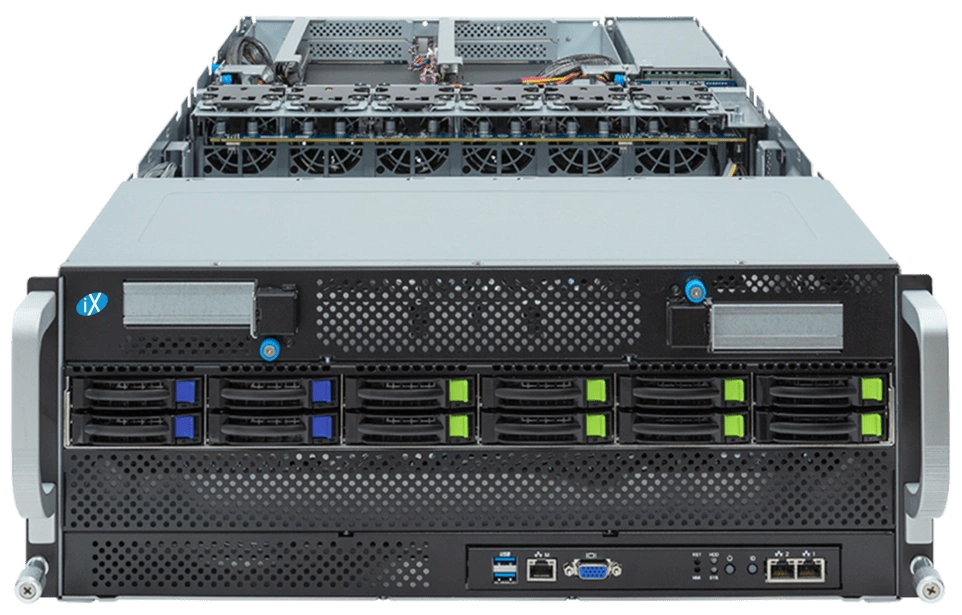

- 8 x 2.5” Hot-Swap NVMe/SATA Drive Bays
- 10 x Dual FHFL GPU Slots
- 2 x PCI-E 5.0 x16 Slots
- 2 x M.2 Slots
|Processor Support||Dual AMD EPYC 9004 (Genoa) Series Processor|
|Chipset||AMD EPYC System on Chip (SoC)|
|System Memory (Max.)||Up to 12 TB Registered ECC DDR5 4800MHz SDRAM; 48 DIMM Slots|
|Networking||Dual 1GbE i350-AM2|
|PCIe Networking Options||Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available|
|VGA/BMC||ASPEED AST2600 BMC|
|Remote Management||Redfish API, IPMI 2.0; KVM with Dedicated LAN|
|Form Factor||4U Rackmount|
|Dimensions||880mm x 448mm x 176mm|
|Onboard Storage Controller||SATA (6 Gbps) Controller + NVMe Controller|
|RAID Controller Options||Optional Hardware RAID or SAS HBA Available|
|Drive Bays||12 x 2.5” Hot-Swap|
|Expansion Slots||10 x PCI-E 5.0 x16 FHFL
2 x PCI-E 5.0 x16 LP HL
|Power Supply||4 x 3000W Redundant High-Efficiency Power Supplies with I2C & PMBus|
- Pricing and product availability subject to change without notice.
